Product Description

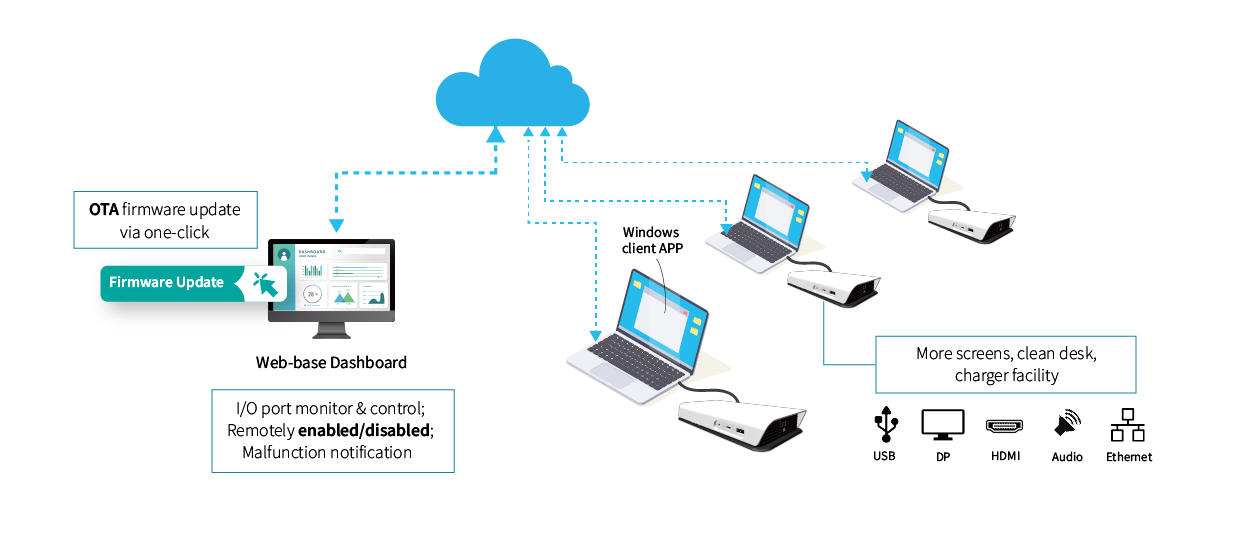

Built-in smart controller supports Microsoft MECM. Via Windows client APP, you can achieve centralized management, port usage control, firmware update, and host laptop power control interaction.
Highlights
- The first docking station to support full remote management, regardless of the make, type, or model of the connected notebook
- Docking station management via Windows client APP
- Remote access to individual docking station resources (video ports, USB ports, LAN, audio) and remote on/off capabilities increase availability, significantly save time, and enhance IT security
- Remote firmware upgrade with PC/NB connection (immediately or at scheduled times)
- 2x DisplayPort and 1x HDMI supporting single 5K/60Hz display, dual 4K/60Hz or triple 4K/30Hz (depending on host performance). macOS supports a single extended display only
- 6x USB-ports (1x USB-C 3.2 Gen. 2, 3x USB-A 3.2 Gen. 2, 2x USB-A 3.2 Gen.1, one of which supports fast charging) make it easy to connect multiple USB devices and peripherals.
- Provides up to 96W Power Delivery for compatible USB-C, Thunderbolt and USB4 laptops & tablets. The host device must support USB-C Power Delivery.
- GLAN Ethernet supports network speeds of 10/100/1000 Mbps speeds, providing a robust and high-speed internet connection.
- Combo 3.5 mm audio input/output jack for easy connection to headset or speakers.
Specifications
| Smart Dock with smart chipset | |||
| Built-in module type | MCU M.2 module | ||
| USB Upstream port | USB-C 3.2 Gen2 x1 | ||
| DP Alt mode | DP1.4 MST | ||
| Video out | DP1.4++ x2 | ||
| Video Resolution | Max. Resolution | DP 1.2 HBR2 | 4K/30Hz x1, FHD/60Hz x 2, FHD/30Hz x3 |
| DP 1.4 HBR3 | 4K/60Hz x1, QHD/60Hz x 2, FHD/60Hz x3 | ||
| DP 1.4 HBR3 DSC | 5K/30Hz x1, 4K/60Hz x 2, 4K/60Hz x3 | ||
| USB Downstream port | USB-A 3.2 Gen2 | x3 (one port supports BC1.2 & Apple charging) | |
| USB-A 3.2 Gen1 | x2 | ||
| USB-C 3.2 Gen2 | x1 (support PD18W charging) | ||
| Audio |
| Headset(Combo) | x1 |
| Ethernet | RJ-45 | 10/100/1000 Mbps | |
| Power Switch | On/Off | x1 | |
| Reset Button | IoT Board reset | x1 | |
| LED | Power | x1 | |
| Wi-Fi | x1 | ||
| BLE | x1 | ||
| DC In | DC Jack | x1 | |
| Power Adapter | 20V/6.75A (135W) | ||
| PD Charging (Max.) | 96W | ||
| Lock Slot | K-Lock x1 | ||
| Dimensions (L) x (W) x (H) | 219 x 105 x 32 mm | ||
