Product Description

Card Tag is a slim type badge design with NFC and Accelerometer sensor.  Adopting Bluetooth 5 hardware and Wirepas software design, Card Tag supports high-level agility and scalability.

Card Tag can be integrated with existing access control system for people tracking, or be taped to cargo or equipment for asset management.



Feature

Support Wirepas mesh V4//V5.x

  •    Bluetooth® 5.0 chipset nRF52832
  •    Waterproof IP65 housing with key-chain hole
  •    Push button for emergency notification or event trigger
  •    3-axis accelerometer and NFC tag

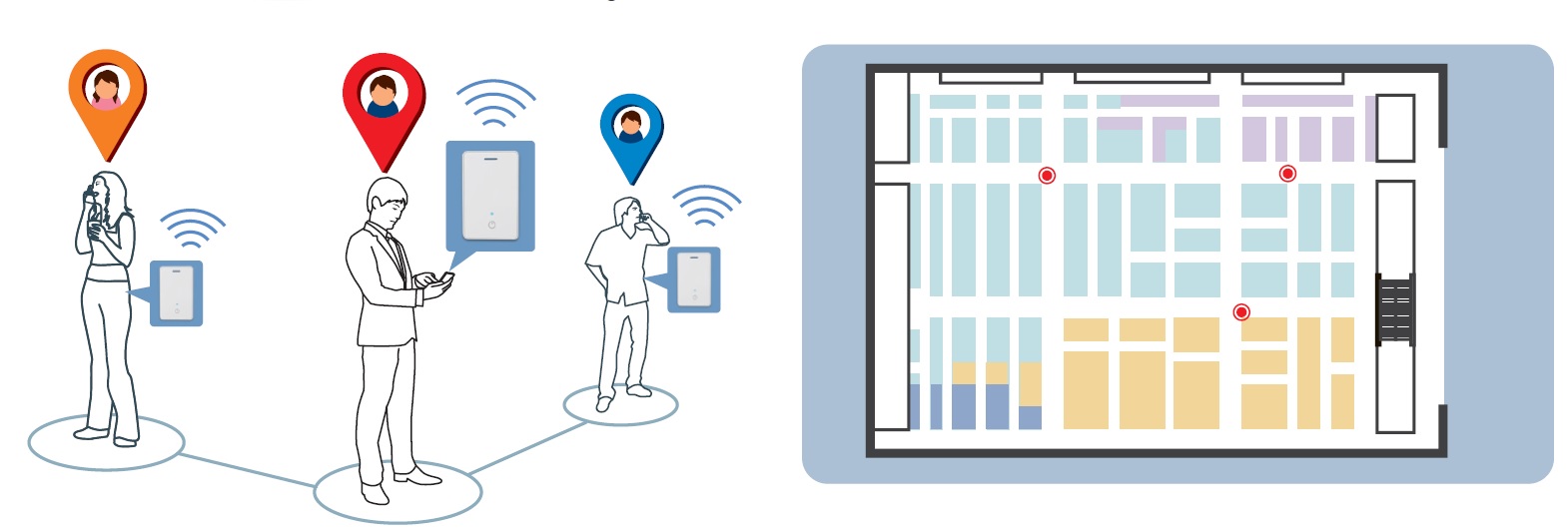

Application

  •    Indoor location
  •    Retail promotion
  •    Activity monitoring
  •    Asset management
  •    People tracking



Specifications


RF Protocol Wirepas Massive (mesh)
NFC Yes (NTAG213)
Battery CP224147(800mAh)
Battery Replaceable No
LED Indicator Blue
Press Switch Button Yes
Waterproof level IP65
Sensor Accelerometer
Operating Temperature -20°C~ 60°C
Dimensions 90 x 60 x 4 mm
